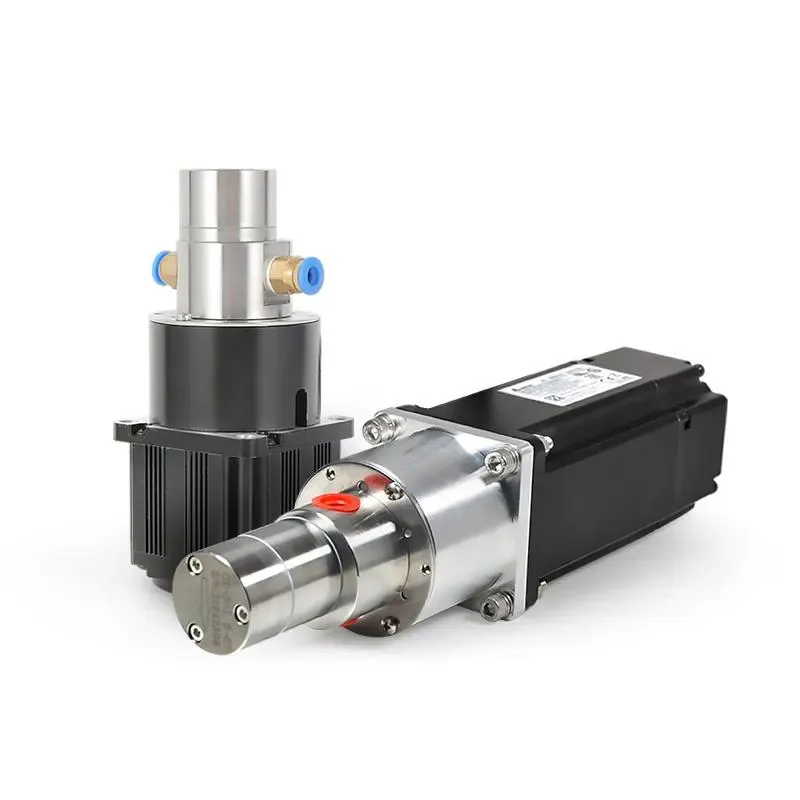

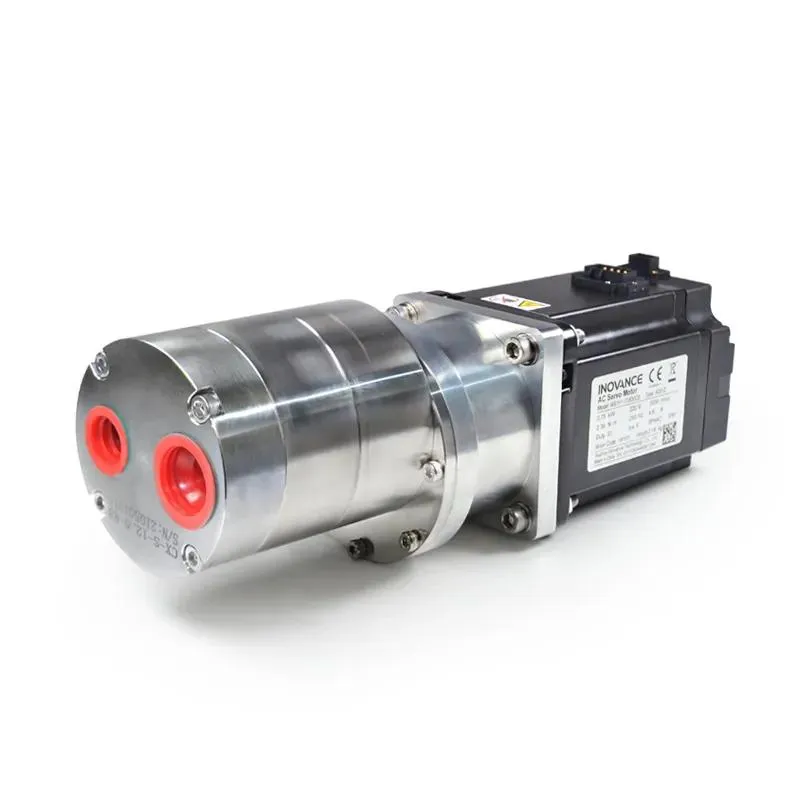

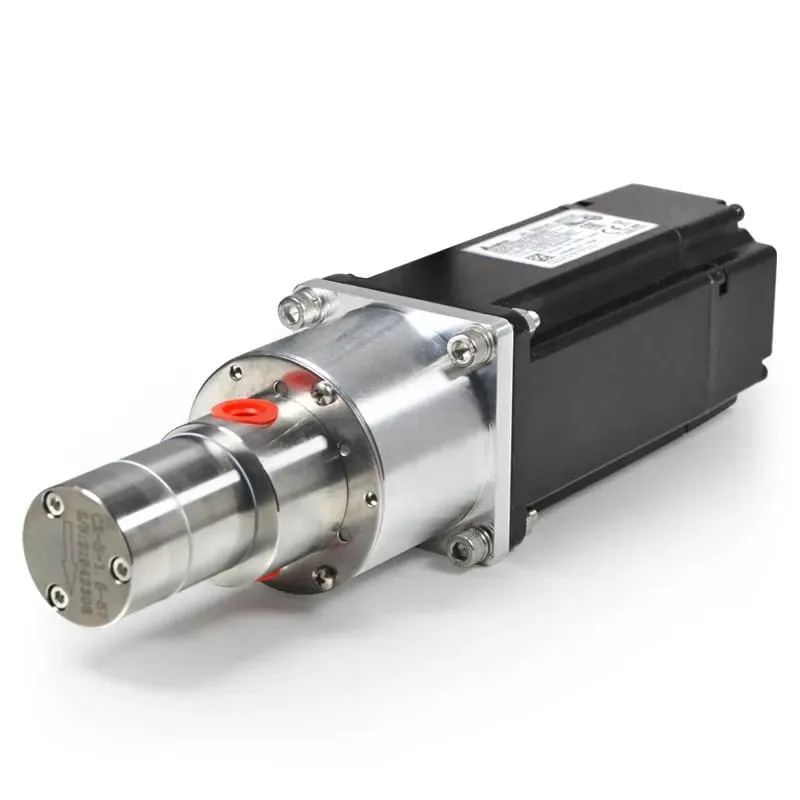

Leak-proof stainless steel magnetic drive gear oil pump engineered for high-precision, low-pulsation metering and dosing in industrial applications.

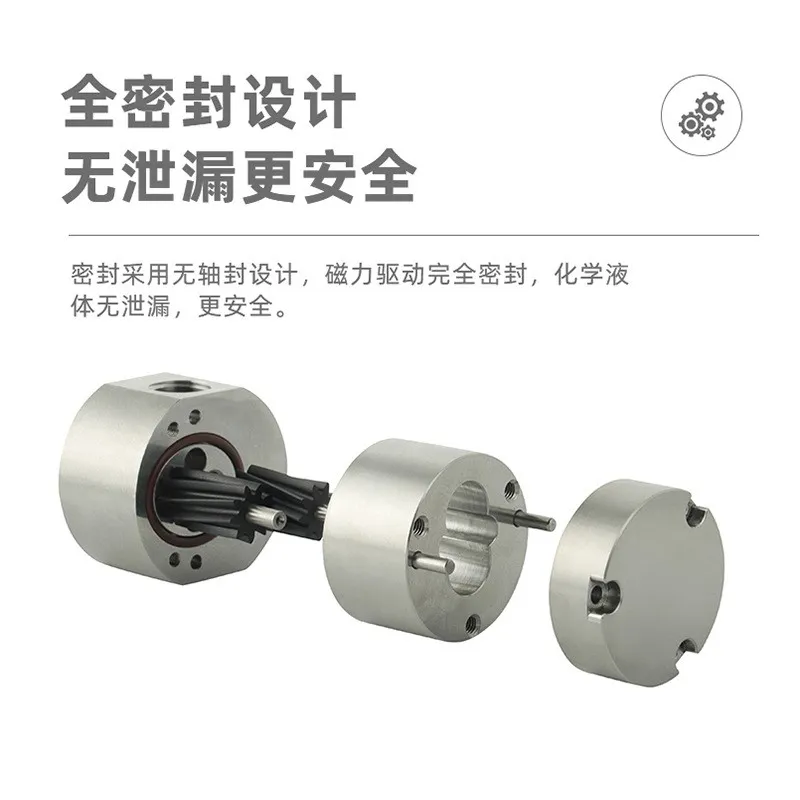

Magnetic drive coupling ensures a completely sealed, leak-proof design, enhancing safety and process purity.
Delivers highly accurate and repeatable fluid metering with a precision of up to ±0.3%.
Constructed primarily from stainless steel for superior corrosion resistance against various chemicals and oils.
Internal gear mechanism provides smooth, low-pulsation flow suitable for sensitive or shear-sensitive media.
Ideal for precise low-pressure dosing, filling, and transfer applications across multiple industries.
Designed for controlled, low-speed operation (5-200 RPM) ensuring consistent performance.
Displacement Range: 4.0 - 30 cc/revolution
Maximum Outlet Pressure: < 8.0 MPa
Metering Accuracy: ±0.3%
Operating Speed Range: 5 - 200 RPM
Primary Material: Stainless Steel / Tool Steel Options
Drive Type: Seal-less Magnetic Coupling
