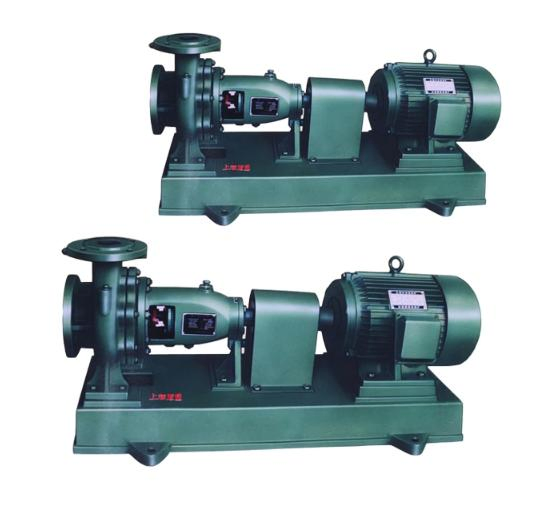

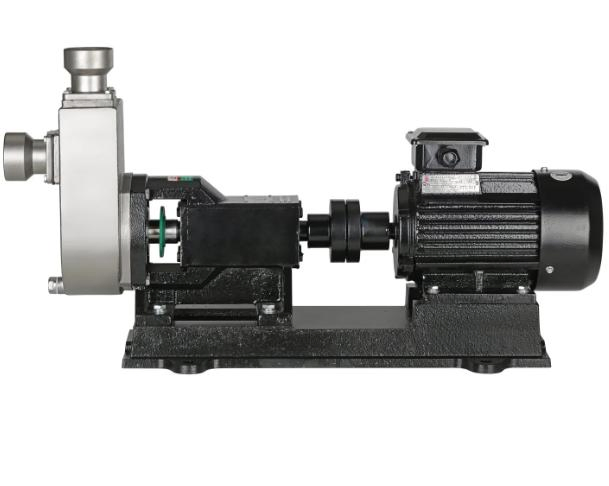

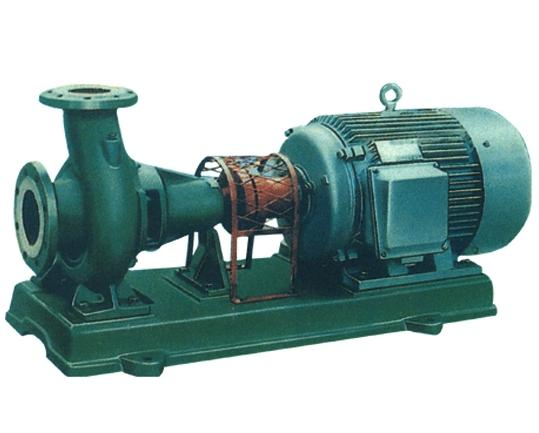

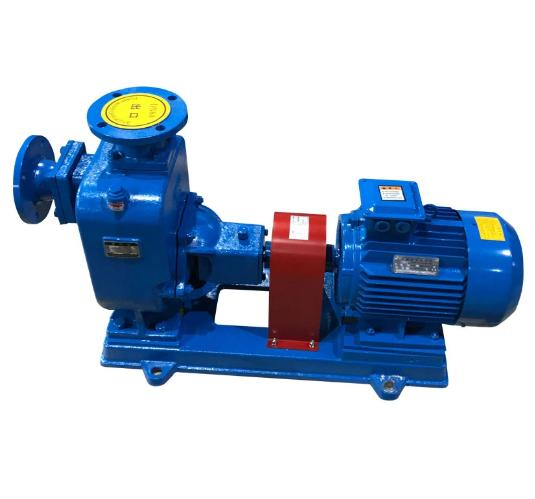

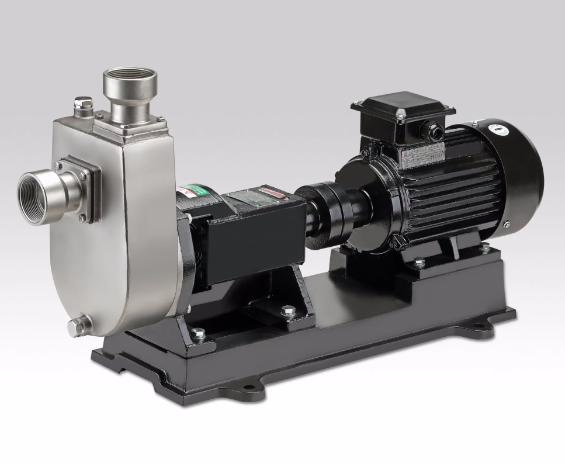

Engineered for high-efficiency, reliable fluid transfer in demanding industrial applications, this self-priming gear oil pump ensures consistent performance and operational stability.
Features a robust self-priming mechanism with outer recirculation, eliminating the need for manual priming and ensuring rapid start-up in critical processes.
Constructed from a wide range of specialized alloys, including duplex steel and Monel, offering superior resistance to corrosion and wear for extended service life.
Delivers a broad operational range, with flow rates from 1.6 to 400 m³/h and lift heads up to 110m to meet diverse industrial system requirements.
Offers versatile motor compatibility, with models configurable for rated speeds of 1450r/min or 2900r/min to optimize efficiency and performance.
Designed for seamless integration into chemical processing, petroleum transfer, and other industrial fluid handling systems requiring high reliability.
Model Series: ZW
Flow Rate Range: 1.6 m³/h to 400 m³/h
Lift Head Range: 5m to 110m
Motor Power Range: 1.1 KW to 110 KW
Available Rated Speeds: 1450 r/min and 2900 r/min
Material Options: Cast Iron, Stainless Steel (304L, 316L, 904L), Duplex Steel (CD4MCu, 2507), Monel, Titanium Alloys
